Grove Modules Conected

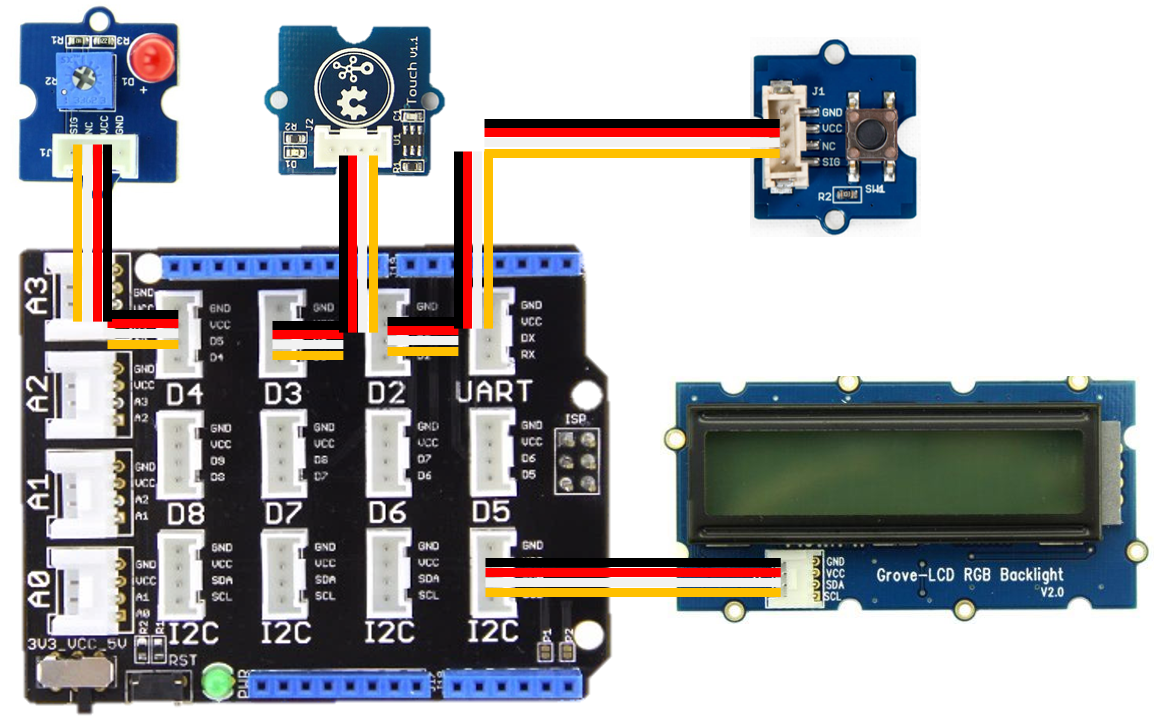

Modules connection
You should connect the Grove sensors/actuators as follows:
LED module to D4
LCD module to I2C
Capacitive sensor to D3
Push button to D2
