Grove Modules Connection
Modules connection

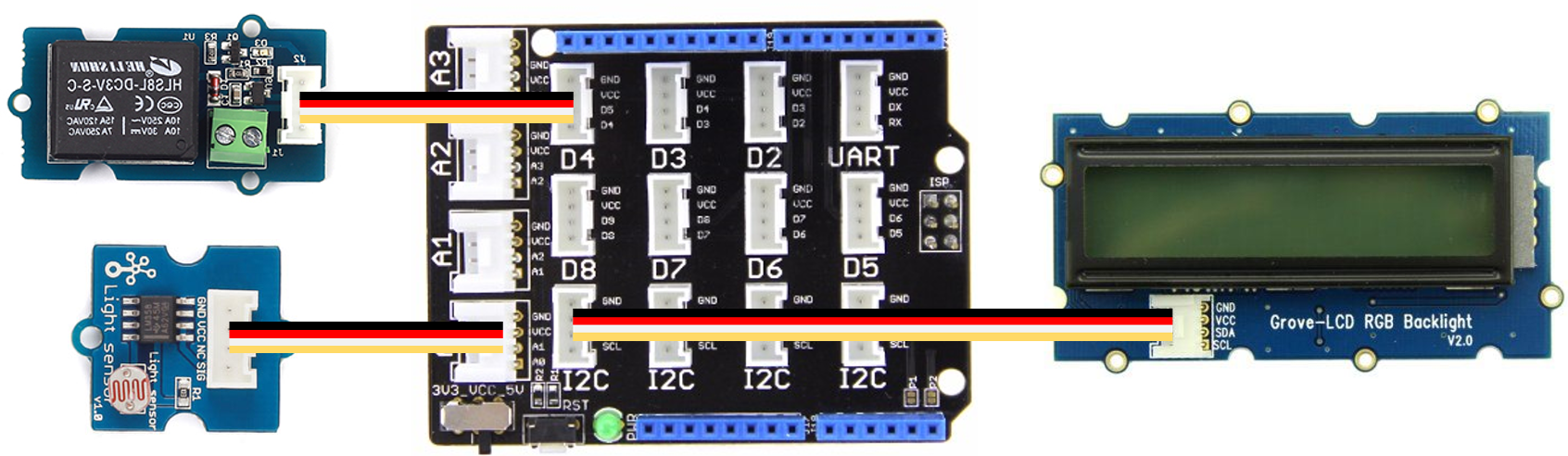

You should connect the Grove sensors/actuators as follows:
Relay module to D4
LCD module to I2C
Light sensor to A0
